DURACOAT™
-- DC-100
General Purpose Wax Thermal Transfer Ribbons
- Excellent
choice when color is needed for general purpose labeling
applications
- Superior
print quality for text, graphics and logos
- Prints
well at high speeds
- Applications:
-
General purpose labeling
- Shipping,
warehousing, and receiving labeling
- Shelf
and bin labeling
- Retail
tag and label applications
- Textile
and apparel labeling
- Flexible
packaging applications
- Recommended
Media:
- Coated
and uncoated paper tag and label stock
-
Polyethelene ilms
- Colors
available:
- Process: Cyan,
Magenta, Yellow, Black
- Spot: Red,
Dark Blue, Light Blue, Green, Maroon, Gray, Gold
|
|
| Technical
Specifications |
|
- Film
Thickness: 4.5 Microns
- Total
Ribbon Thickness: 8.0 Microns
- Ink
Melting Point: 68° C, 154° F
- Recommended
Maximum Print Speed: 8 IPS
|
|
|

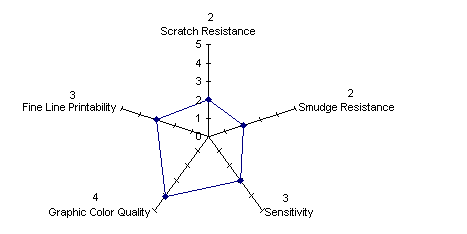

Star
Diagram
This diagram is representative of the DC-100 ribbon used in
general purpose applications when printing on coated tag and
label stocks.
|
|
 |
|
| Storage
Conditions |
|
To
ensure optimal performance, please adhere to the following
environmental conditions for use, shipping and storage.
- For
optimal print results, thermal transfer printing should
occur in the temperature range of 5° C (41°
F) to 35° C (95° F) at 45% to 85%
relative humidity.
- Recommended
shipping conditions for up to one month duration are
-5° C (23° F) to 45°
C (113° F) at 20% to 85% relative humidity.
- To
ensure the ribbon¡s performance, our suggested storage
conditions for up to one year duration are -5°
C (23° F) to 40° C (104°
F) at 20% to 85% relative humidity.
Please
Note: Exposing Thermal
Transfer Ribbons to direct sunlight or moisture will cause
damage to the ribbons. |
