Duracoat™-DC-300



DURACOAT -- DC-300
Specialty Color Resin Thermal Transfer Ribbons


  • Unique UV resistant formula designed for outdoor/vinyl applications
  • Weather resistant to rain, fog, smog, and sleet
  • Superb print quality
  • Smudge and scratch proof
  • Exceptional scratch and smudge resistance
  • Applications:
    • Outdoor signage/traffic signs
    • Indoor signage
    • Chemical drum labeling
    • Nursery and Lumber applications
  • Recommended Media:
    • Polypropylene and polyester films
    • Select polyimide films
    • Vinyl
  • Colors available:
    • Process: Cyan, Yellow, Magenta, Black
    • Spot: Golden Yellow, Sunflower Yellow, Orange, Tomato Red, Ruby Red, Burgundy, Leaf Green, Pine Green, Forest Green, Silver*, Gold*, Ocean Blue, Bright Blue, Blue, Sapphire Blue

      * Silver and Gold are not available

Technical Specifications

  • Film Thickness: 4.5 Microns
  • Total Ribbon Thickness: 7.0 Microns

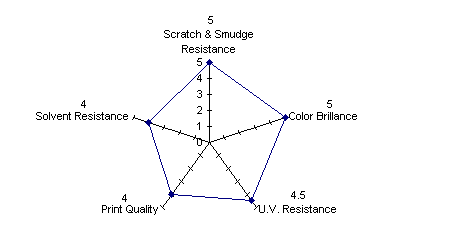

Star Diagram:
This diagram is representative of DC-300 ribbons used in applications when printing on vinyl.



Storage Conditions

To ensure optimal performance, please adhere to the following environmental conditions for use, shipping and storage.
    • For optimal print results, thermal transfer printing should occur in the temperature range of 5° C (41° F) to 35° C (95° F) at 45% to 85% relative humidity.
    • Recommended shipping conditions for up to one month duration are -5° C (23° F) to 45° C (113° F) at 20% to 85% relative humidity.
    • To ensure the ribbon ís performance, our suggested storage conditions for up to one year duration are -5° C (23° F) to 40° C (104° F) at 20% to 85% relative humidity.

Please Note: Exposing Thermal Transfer Ribbons to direct sunlight or moisture will cause damage to the ribbons.

American Printing Converters' goal is to achieve total customer satisfaction, and we offer a 100% guarantee on all our bar code thermal transfer ribbon products.
